TWiki User Reports

This page contains user reports you can use in TWiki application. Create appealing TWiki applications in a no time!

Reports are of format %USERREPORT{ action="..." … }%, where the action determines the kind of report. Each report supports additional parameters.

Action: user_list

Show a simple list of registered users. The output is a comma-space delimited sorted list of WikiWords of users (without web prefix), which can be used as input for other reports on this page.

• Action "user_list": Show a list of users as comma-space delimited list of WikiWords.
  • Parameter search: Apply filter by searching all form fields, but not the main topic text. Optional; all users are returned if missing.
  • Parameter limit: Limits the number of users returned. Optional; all users are returned if missing.
  • Parameter sort: Sort the result by the topic name, topic creation date, last modified date, last editor, or named field of TWikiForms. For details see sort parameter of SEARCH.
  • Parameter reverse: Reverse the direction of the search result

This report also sets a "UserReports_users" variable to the number of users found. To retrieve, write %GET{UserReports_users}%.

Usage example:

%USERREPORT{ action="user_list" search="jane" limit="5" }%

Sample output:
%GET{UserReports_5_users}%

Action: profile_picture

Show the profile picture image of a user. A default image is returned in case the image is not defined in the Image form field of the user. The output is an <img /> tag that can be embedded in other tags such as links.

• Action "profile_picture": Show the profile picture image of a user.
  • Parameter user: WikiWord of user, required.
  • Parameter width: Width of image, optional.
  • Parameter height: Height of image, optional. The aspect ratio is preserved unless width and height are specified. If width and height are missing, a height of 100 pixels is used.
  • Parameter title: Title parameter of img tag, optional.

Usage example:

%USERREPORT{ action="profile_picture" user="WikiGuest" height="40" title="WikiGuest" }%
%USERREPORT{ action="profile_picture" user="AmandaBoris" height="40" title="AmandaBoris" }%

Sample output:
%USERREPORT{ action="profile_picture" user="WikiGuest" height="40" title="WikiGuest" }% %CALCULATE{$LISTJOIN($sp, $LISTMAP(  $NOP(%)INCLUDE{ "System.UserReports" section="profile_picture" user="$item" height="40" title="$item" }$NOP(%), %GET{UserReports_5_users}%))}%

Action: user_sig

Show a user signature with profile picture, optionally followed by a date or other text. A default image is shown in case the image is not defined in the Image form field of the user.

• Action "user_sig": Show a user signature with profile picture.
  • Parameter user: WikiWord of user, required. Optionally followed by a date or other text.
  • Parameter width: Width of image, optional.
  • Parameter height: Height of image, optional. The aspect ratio is preserved unless width and height are specified. If width and height are missing, a height of 18 pixels is used.

In addition, a USERSIG preferences setting is defined as a shortcut, so that a simple %USERSIG{WikiGuest}% can be used.

Usage example:

-- %USERREPORT{ action="user_sig" user="WikiGuest - 16 Sep 2025" }%

-- %USERSIG{WikiGuest}%

-- %USERSIG{WikiGuest - 16 Sep 2025}%

Sample output:
-- %USERREPORT{ action="user_sig" user="WikiGuest - 16 Sep 2025" }%

-- %USERSIG{WikiGuest}%

-- %USERSIG{WikiGuest - 16 Sep 2025}%

Action: bubble_sig

Show a faded comment bubble and user signature with profile picture, optionally followed by a date or other text. A default image is shown in case the image is not defined in the Image form field of the user. This is used for CommentPlugin signatures.

• Action "bubble_sig": Show a user signature with profile picture.
  • Parameter user: WikiWord of user, required. Optionally followed by a date or other text.

In addition, a BUBBLESIG preferences setting is defined as a shortcut, so that a simple %BUBBLESIG{WikiGuest}% can be used.

Usage example:

Test comment using USERREPORT

-- %USERREPORT{ action="bubble_sig" user="WikiGuest - 16 Sep 2025" }%

Test comment using BUBBLESIG

-- %BUBBLESIG{WikiGuest - 16 Sep 2025}%

Sample output:
Test comment using USERREPORT

-- %USERREPORT{ action="bubble_sig" user="WikiGuest - 16 Sep 2025" }%

Test comment using BUBBLESIG

-- %BUBBLESIG{WikiGuest - 16 Sep 2025}%

Action: slim_box

Show slim, one line height user boxes. Several actions are provided:

• Action "slim_box_css": Defines the style sheets of the slim boxes. Optionally include it once per page; it is done for you by the "slim_box_start" action if needed.
• Action "slim_box_start": Defines the start of a set of slim boxes.
  • Parameter style: Optional, overrides the css of the container div of slim boxes. Default: padding:0 5px 0 5px; background-color:#f0f0f4;.
• Action "slim_box": Show a single slim box.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the slim box. Default: float: left; width: 130px; border: solid 1px #d0d0d8; background-color: #f8f8fb;.
• Action "slim_box_list": Show a set of slim boxes.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "slim_box".
• Action "slim_box_end": Defines the end of a set of slim boxes.

Usage example:

%USERREPORT{ action="slim_box_start" }%
  %USERREPORT{ action="slim_box" user="WikiGuest" }%
  %USERREPORT{ action="slim_box" user="JaneSmith" }%
%USERREPORT{ action="slim_box_end" }%
%USERREPORT{ action="slim_box_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="slim_box_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="slim_box_end" }%

Sample output:
%USERREPORT{ action="slim_box_start" }% %USERREPORT{ action="slim_box" user="WikiGuest" }% %USERREPORT{ action="slim_box_list" users="%GET{UserReports_5_users}%" }% %USERREPORT{ action="slim_box_end" }%

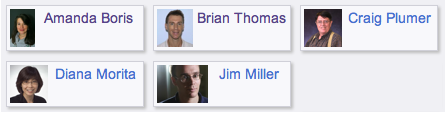

Action: small_box

Show small, two line height user boxes. Several actions are provided:

• Action "small_box_css": Defines the style sheets of the small boxes. Optionally include it once per page; it is done for you by the "small_box_start" action if needed.
• Action "small_box_start": Defines the start of a set of small boxes.
  • Parameter style: Optional, overrides the css of the container div of small boxes. Default: padding:0 5px 0 5px; background-color:#f0f0f4;.
• Action "small_box": Show a single small box.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the small box. Default: float: left; width: 130px; border: solid 1px #d0d0d8; background-color: #f8f8fb;.
• Action "small_box_list": Show a set of small boxes.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "small_box".
• Action "small_box_end": Defines the end of a set of small boxes.

Usage example:

%USERREPORT{ action="small_box_start" }%
  %USERREPORT{ action="small_box" user="WikiGuest" }%
  %USERREPORT{ action="small_box" user="JaneSmith" }%
%USERREPORT{ action="small_box_end" }%
%USERREPORT{ action="small_box_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="small_box_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="small_box_end" }%

Sample output:
%USERREPORT{ action="small_box_start" }% %USERREPORT{ action="small_box" user="WikiGuest" }% %USERREPORT{ action="small_box_list" users="%GET{UserReports_5_users}%" }% %USERREPORT{ action="small_box_end" }%

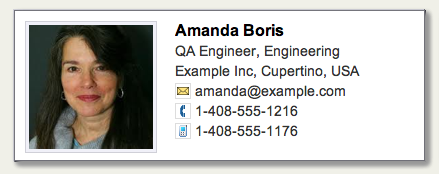

Action: business_card

Show users in business card format. Several actions are provided:

• Action "business_card_css": Defines the style sheets of the business cards. Optionally include it once per page; it is done for you by the "business_card_start" action if needed.
• Action "business_card_start": Defines the start of a set of business cards.
  • Parameter style: Optional, overrides the css of the container div of business cards. Default: padding:10px 15px 1px 15px; background-color:#f0f0f4;.
• Action "business_card": Show a single business card.
  • Parameter user: Specify the WikiWord of a single user.
  • Parameter style: Optional, overrides the css of the business card. Default: float: left; width: 410px; border: solid 1px #d0d0d8; background-color: #fff;.
• Action "business_card_list": Show a set of business cards.
  • Parameter users: Specify a list of WikiWords of users. The list may be provided by including the "user_list" action.
  • Parameter style: Optional, same as action "business_card".
• Action "business_card_end": Defines the end of a set of business cards.

Usage examples:

%USERREPORT{ action="business_card_start" }%
  %USERREPORT{ action="business_card" user="WikiGuest" }%
  %USERREPORT{ action="business_card" user="JaneSmith" }%
%USERREPORT{ action="business_card_end" }%
%USERREPORT{ action="business_card_start" style="background-color: #f0f0e8;" }%
  %USERREPORT{ action="business_card_list" users="UserOne, UserTwo, UserThree" }%
%USERREPORT{ action="business_card_end" }%

Sample output: %USERREPORT{ action="business_card_start" style="background-color: #f0f0e8;" }% %USERREPORT{ action="business_card_list" users="%GET{UserReports_5_users}%" }% %USERREPORT{ action="business_card_end" }%

Action: select_one_user

Show a selector to pick a user, for use in HTML forms.

• Action "select_one_user": Selector to pick a user.
  • Parameter name: Name of form field, required.
  • Parameter selected: WikiWord name of a user, optional.
  • Parameter users: Specify a list of WikiWords of users, optional. The list may be provided by including the "user_list" action. All registered users are shown if the parameter is missing.
  • Parameter firstoption: Label of first option, optional. Default: Select...
  • Parameter firstvalue: Value of first option, optional. Default: empty value

Usage example:

<form>
%USERREPORT{ action="select_one_user" name="Owner" selected="WikiGuest" }%
</form>

Sample output:

%USERREPORT{ action="select_one_user" name="Owner" selected="WikiGuest" users="%GET{UserReports_100_users}%" }%

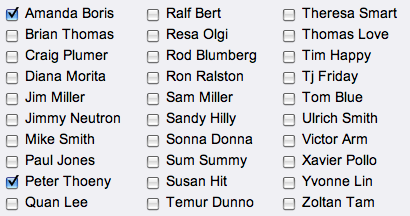

Action: select_users

Show rows of checkboxes to select users, for use in HTML forms.

• Action "select_users": Set of checkboxes to select users.
  • Parameter name: Name of form field, required.
  • Parameter selected: List of WikiWord names indicating the selected users, optional.
  • Parameter users: Specify a list of WikiWords of users, optional. The list may be provided by including the "user_list" action. All registered users are shown if the parameter is missing.
  • Parameter colums: Define number of columns, optional. Default: 5
  • Parameter style: Set the css of the container div, optional. Default: margin: 0; border: 1px solid transparent;

Usage example:

<form>
%USERREPORT{ action="select_users" name="Members" selected="WikiGuest, AmandaBoris" }%
</form>

Sample output:

%USERREPORT{ action="select_users" name="Members" selected="WikiGuest, AmandaBoris" users="%GET{UserReports_100_users}%" style="background-color: #f0f0f4;" }%

Note to Maintainer:

• This topic has user report sections intended for TWiki application developers.
• This topic uses more user friendly ParameterizedVariables %USERREPORT{ action="foo" … }% instead of the more verbose parameterized include %INCLUDE{ "%SYSTEMWEB%.UserReports" section="foo" … }%.
• If you add a section to this topic, or add a parameter to a section, make sure to keep the parameterized variables settings in TWikiPreferences in sync.

Related topics: TWikiGroups, TWikiUsers, UserList, UserListByDateJoined, UserListByLocation, VarUSERREPORT, TWikiUserMappingContrib

-- TWiki:Main.PeterThoeny - 2014-10-04
